Modular

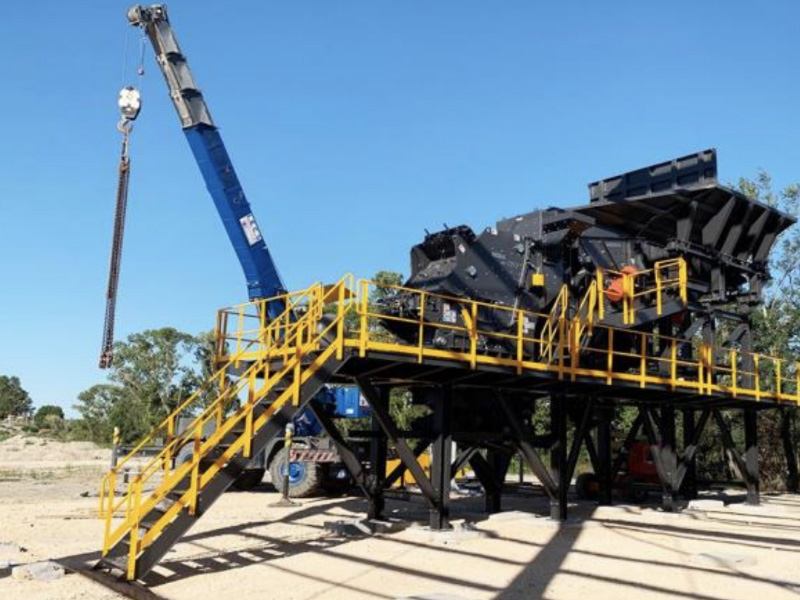

The Modular MPI crushers, offering high reduction ratios, reduced power consumption, easier and safer maintenance are the solution for operating conditions where output and productivity demands are increasingly stringent. Modular MPI crushers are extremely versatile machines and have proven their effectiveness in a host of missions like crushing low abrasive materials for quarrying, cement industry, concrete and asphalt recycling, and slag recycling

• Quick and easy installation.
• Very simple design with high mechanical reliability.
• Easy to operate.
• Less sensitive to sticky material than other crushers.
• Fixed or wheel mounted applications.

Crusher main body is fabricated from low carbon steel. Crushing chamber is completely lined with thick, interchangeable, bolt-on abrasion resistant (AR) liners. Sensors on the frame make maintenance interventions safer by preventing machine start up. Inspection doors located all aroundthe frame make it possible to reach the interior of the crusher

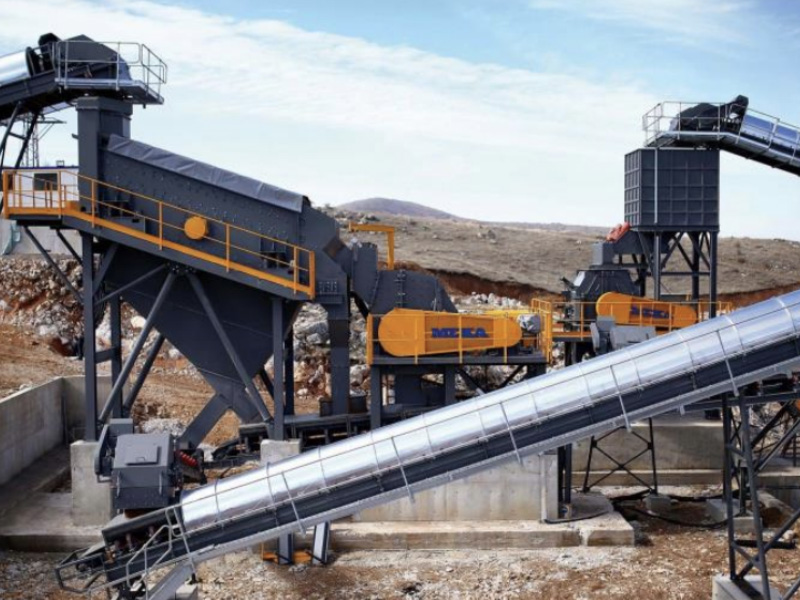

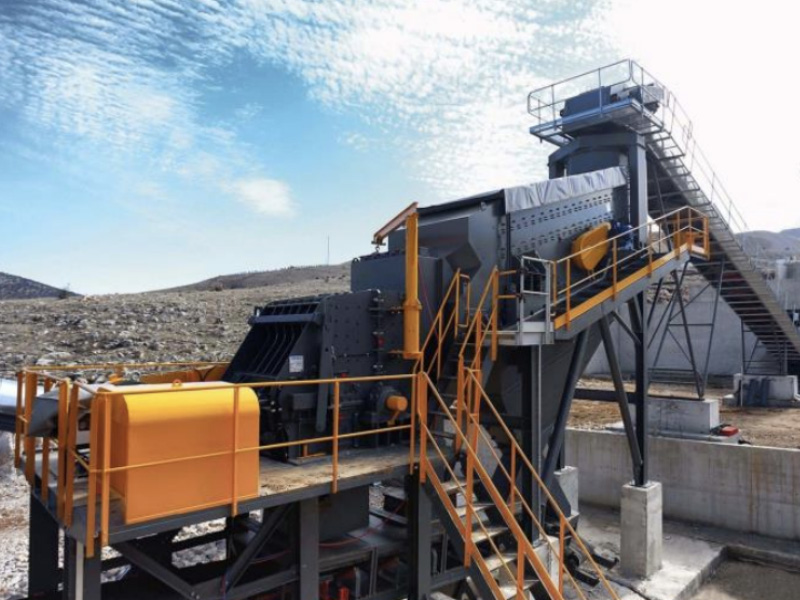

With its comprehensive range of types we offer the right machine for every performance requirement. Modular MSI and MSIH series impactors are widely accepted as the machine of choice as secondary reduction units for materials of medium to low silica contents such as limestone, dolomitic limestone, dolomite andgypsum. Large feed opening, cubical products, high reduction ratio, high capacity, low investment and operating costs are some of the features which make these crushers ideal as secondary crushers in complete crushing plants.

Ease of maintenance is another prime advantage of these crushers. Hydraulic opening of the frame, external breaker plate adjustment, quick and easy blow bar change-out and liner replacement are a few of the features which make operation as simple as possible.

The Modular MSI Series Secondary Impact Crusher is ideally suited to crush soft to medium hard materials down to a highly cubical, well graded product size of 0-80 mm in a single pass. Although this crusher is normally offered within a plant where tertiary crushing is also present, due to its high reduction ratio, the need for tertiary crushing can be eliminated.

Capacity stph 110-165 165-275 275-385 , Power HP 180-215 270 340-428

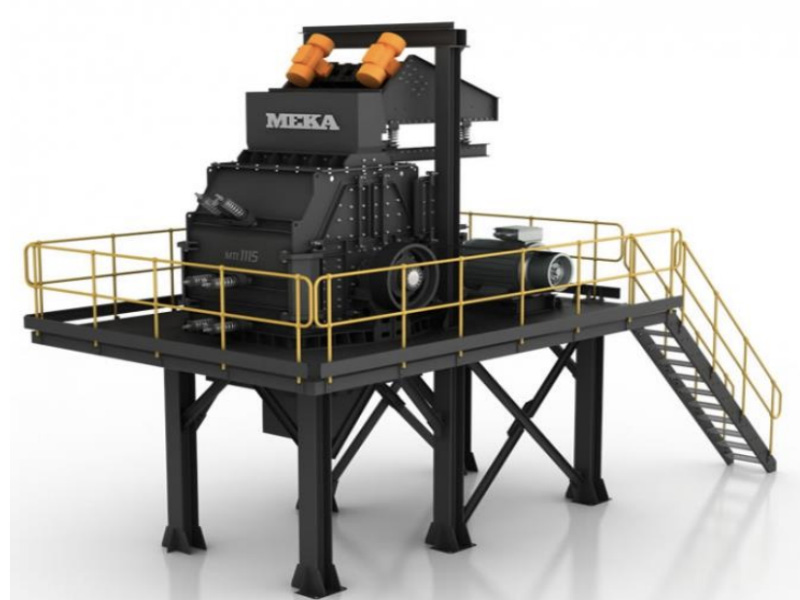

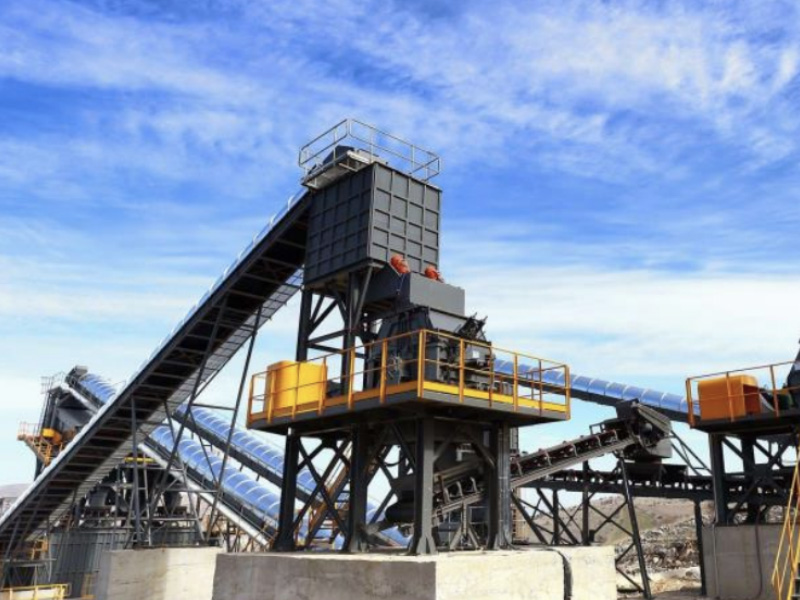

Impact crushers are manufactured with different rotor sizes and the required motor power is selected according to the application. The strength of MTI crushers makes them ideal for every kind of application in many different configurations. MTI crushers have demonstrated their effectiveness in many missions from crushing low abrasive materials to industrial applications and recycling.

Designed for crushing soft and medium-hard materials with close grain distribution and cubical products, tertiary impact crushers are an excellent solution in the production of fine aggregates for concrete and asphalt applications. Adjustable and interchangeable breaker plates enable size reduction up to 50 percent with a durable rotor that can operate in both directions, lowering the overall operational and inventory costs of the machine.

Crusher main body is fabricated from low carbon steel. Crushing chamber is completely lined with thick, interchangeable, bolt-on abrasion resistant (AR) liners.
Sensors on the frame make maintenance interventions safer by preventing machine start up. Inspection doors located all around the frame make it possible to reach the interior of the Crusher. Enhanced solid wear parts and liners.CR Series equipped with high chromium casting blowbars, provide an extended lifetime.

The quality of the dynamic rotor balance is G 6.3, according to ISO 1940/1. The flywheel and the pulley are connected to the shaft with clamping collars, and a durable V-belt ensures long-term use. High quality heavy-duty bearings, with bearing temperature sensors.

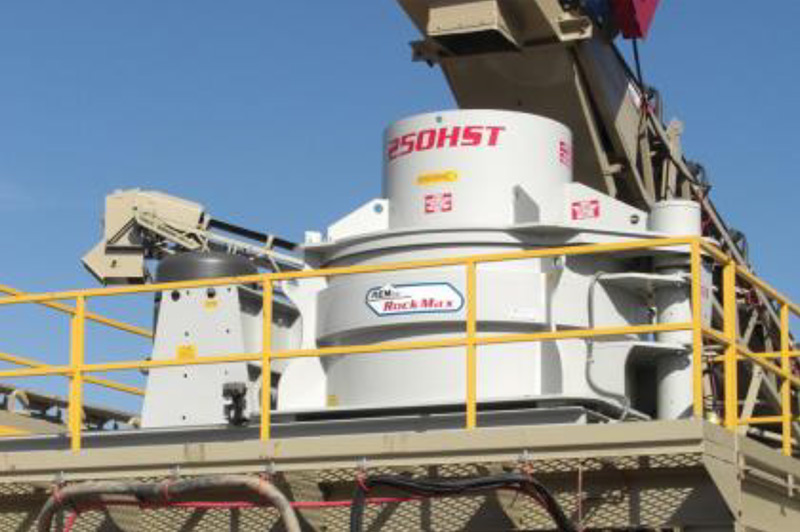

The Modular Vertical Shaft Impact (VSI) crushers are designed to be used in secondary, tertiary or quaternary stage crushin g. The crushers are suitable for a wide range of applications including the production of high quality manufactured sand, well formed aggregates and industrial minerals. Crushers can also be used for shaping or removal of soft stone from aggregate. Advanced alternatives with open table designs, multi-port rotor and larger bearings than many other VSI crushers are the main reasons for our crushers to provide high value solutions and deliver high performance. We provide static, wheel mounted VSI plants and components. VSI Impact Crushers are suitable for manufactured sand, recrush of slow selling stocks, cubical products fractured gravel, material beneficiation, crushing of cement clinker before mi lls and glass recycling applications. Two different designs are available from our product range.

We understand that the greatest success comes when the users and the VSI manufacturer fully understand the crushing task. While most crusher manufacturers make a limited number of VSI models in fixed configurations, REMco manufactures a variety of them. We make a multitude of configurations for each type to maximize the machinery’s performance and production rate while minimizing the wear and tear to the machine as well as saving energy costs; all with easy maintenance.

REMco tailors each crusher to a given task to be sure each task is completed to your specific needs.

The Modular product range has been specifically created to meet a wide range of static crushing and screening applications.

All modules are pre-engineered and pre-built to operate on a small footprint with low civil engineering and operating costs with fast, easy on-site assembly and minimal wiring. Plus, the modules and components can be easily transported in standard shipping containers or by road, enabling you to quickly mobilize on site to a different location.

This means you can count on engineering technology that delivers in terms of maintenance access, longevity, and cost per ton.

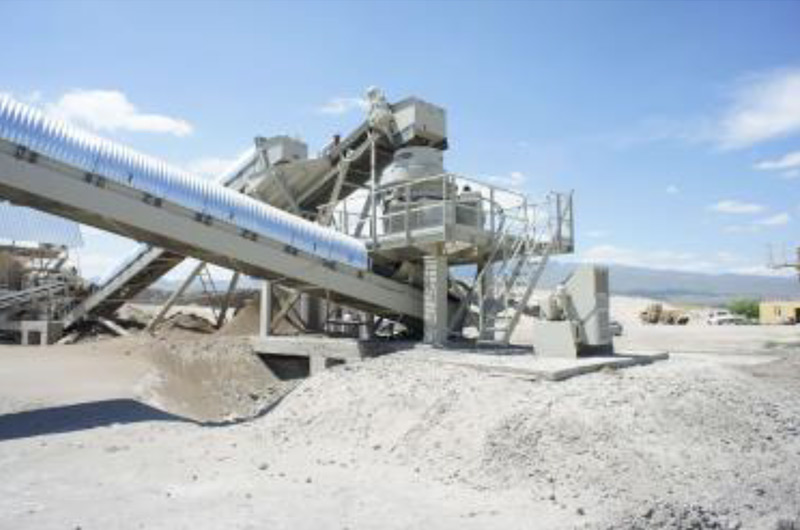

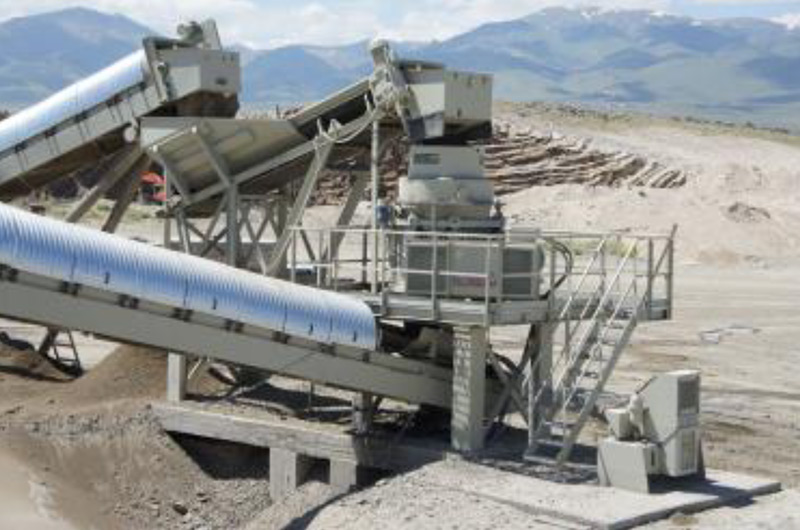

The K series Modular Cone Crusher handles an all-in feed for continuous crushing. has a full range of configurations for short and long throw. The all-roller bearing design delivers enhanced crushing efficiency. Set up time and ease of operation is aided by the simplicity of the modular product range. All of our modular crushers and modular screens bolt together on site and require minimal on-site wiring. Designed with logistics in mind, the K Series Modular Cone Crusher , including all its components, can be transported in one container.
