Track Crusher and Screeners

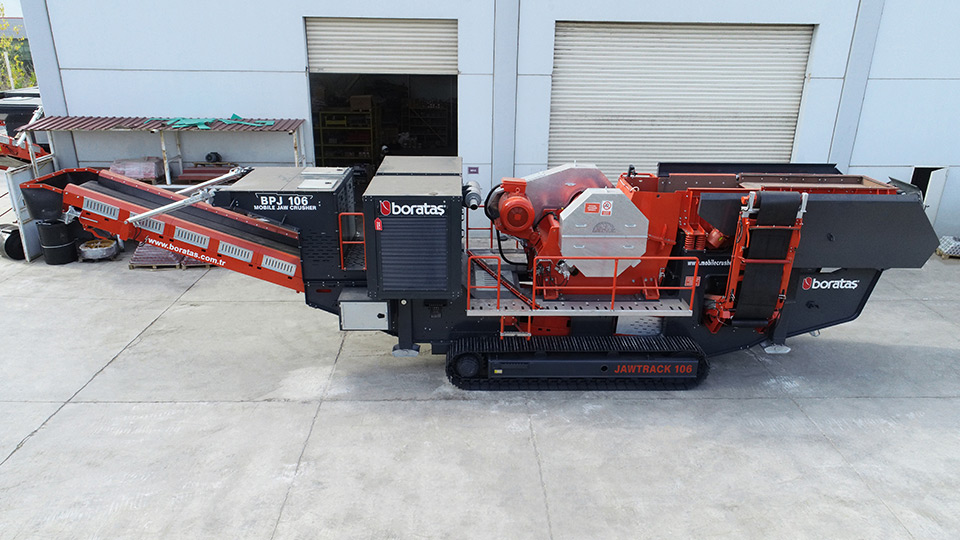

BPJ 106 Tracked Jaw Crusher

Mobile jaw crushers of Jawtrack series are the perfect combination of compactness, mobility and high performance featuring an imposing jaw crusher from the performant BCK jaw crusher series. Typically used in mining, quarrying and recycling, These mobile jaw crushers are ideal for work in urban regions with a limited surface.

Using a single toggle jaw, Jawtrack BPJ106 mobile jaw crushers are high performing mobile crushers able to crush all types of natural stones from the hardest granites to more abrasive varieties. Moreover, they are also used for recycling by reducing materials such as asphalt, concrete and other construction materials.

The perfect interaction of the mobile jaw crusher components makes them super-efficient and extremely productive.

Furthermore, Jawtrack BPJ106 come with different sizes and features and are supplied as standard or customized versions.

Ideal For:

  • Recycling applications such as asphalt and concrete​
  • Granite and natural stones with medium-hard level of hardness and high abrasivity​
  • Multistage crushing and screening applications​
  • Users in urban regions who are interested in compactness​

High Mobility

Its durable and heavy duty track system provides mobility on all types of grounds. The mobile jaw crusher is controled with a wireless remote and can go as fast as 1.2km/h.

Easy to Maintain

The PLC screen in the control cabin notifies the user of occuring breakdowns and its place. There are no issues related to hydraulic systems since the machine operates on electricity and diesel. Maintenance and part replacements is very simple and can be done​.

High Capacity Crushing

The mobile jaw crusher is equipped with reliable and greatly efficient jaw crushers from the BCK series. These crushers are able to crush all types of natural stones at high output even at tight opening settings.​

Benefits

  • Adaptable to all applications​
  • Mobility, flexibility and compactness​
  • Safe and easy transport​
  • Robust chassis and track frame​
  • Robust and wear resistant feed hopper​
  • Low fuel consumption (20-40% less than hydraulic models)​
  • Easy and rapid maintenance ​
  • High uptime and high productivity​
  • High crushing capacity​
  • Low operating costs​

Standard Version

  • Featuring highly efficient jaw crusher from BCK series with high capacity​
  • By-pass chute with side hydraulically foldable conveyor ​
  • Wireless remote for easy control​
  • Bunker with hydraulically foldable back and side ​
  • Electric – Diesel ​
  • Dust reduction system​
  • Drum motors for conveyors​
  • PLC control system​
  • Vibrating Feeder with Grizzly screen​

Detail

Value

Feed Capacity

100-150 tph

Feed Opening

1.000×600 mm

Weight

40.000 kg

Engine​:
Scania / Electric Hybrid​

110 kVA

BPJ 120 TRACKED JAW CRUSHER

Mobile jaw crushers of Jawtrack series are the perfect combination of compactness, mobility and high performance featuring an imposing jaw crusher from the performant BCK jaw crusher series. Typically used in mining, quarrying and recycling.

These mobile jaw crushers are ideal for work in urban regions with a limited surface.

Using a single toggle jaw, Jawtrack BPJ120 mobile jaw crushers are high performing mobile crushers able to crush all types of natural stones from the hardest granites to more abrasive varieties. Moreover, they are also used for recycling by reducing materials such as asphalt, concrete and other construction materials.

The perfect interaction of the mobile jaw crusher components makes them super-efficient and extremely productive.

Furthermore, Jawtrack BPJ120 come with different sizes and features and are supplied as standard or customized versions.

Ideal For:

  • Recycling applications such as asphalt and concrete
  • Granite and natural stones with medium-hard level of hardness and high abrasivity
  • Multistage crushing and screening applications
  • Users in urban regions who are interested in compactness

High Mobility

Its durable and heavy duty track system provides mobility on all types of grounds. The mobile jaw crusher is controled with a wireless remote and can go as fast as 1.2km/h.

Easy to Maintain

The PLC screen in the control cabin notifies the user of occurring breakdowns and its place. There are no issues related to hydraulic systems since the machine operates on electricity and diesel. Maintenance and part replacements is very simple and can be done.

High Capacity Crushing

The mobile jaw crusher is equipped with reliable and greatly efficient jaw crushers from the BCK series. These crushers are able to crush all types of natural stones at high output even at tight opening settings.

Benefits

  • Adaptable to all applications
  • Mobility, flexibility and compactness
  • Safe and easy transport
  • Robust chassis and track frame
  • Robust and wear resistant feed hopper
  • Low fuel consumption (20-40% less than hydraulic models)
  • Easy and rapid maintenance
  • High uptime and high productivity
  • High crushing capacity
  • Low operating costs

Standard Version

  • Featuring highly efficient jaw crusher from BCK series with high capacity
  • By-pass chute with side hydraulically foldable conveyor
  • Wireless remote for easy control
  • Bunker with hydraulically foldable back and side

Detail

Value

Feed Capacity

150-350 tph​​​

Feed Opening

48″x 28″
(1.200×700 mm​​​)​

Weight

40.000 kg

Engine​:
Scania / Electric Hybrid​

370 HP /275 kVA​​​

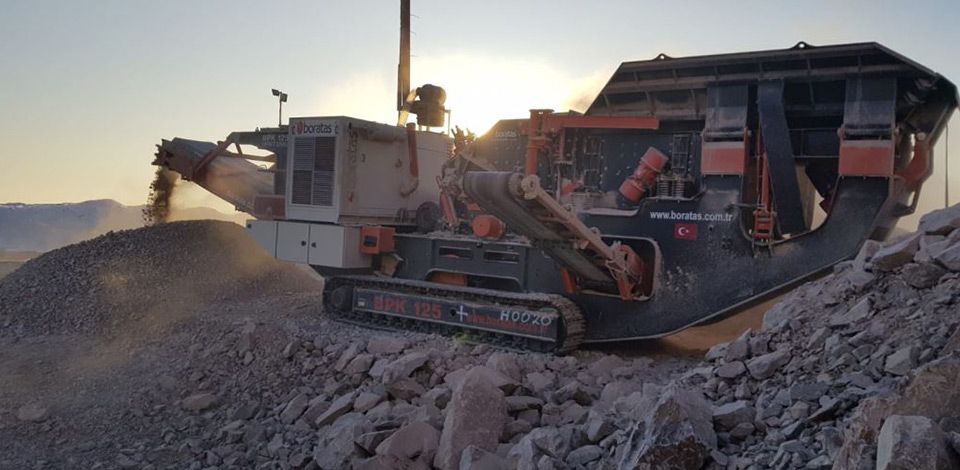

BPK100 Tracked Impact Crusher

Mobile impact crushers BPK100 of the Rocktrack series are highly efficient mobile crushers with excellent reduction ratios and cubical shaping abilities able to crush natural stone with low-medium hardness levels. This mobile unit is used for aggregate production and recycling. Rocktrack BPK100 can either be supplied as standard or customized by adding various options.​

Mobility Combined With Productivity

The stand-out feature of the Boratas Machinery mobile impact crusher is its mobility, combined with high productivity per hour. Units are fully self-contained on their tracked undercarriage and can easily be driven off a trailer by one operator and quickly put to work, with excellent capability for moving directly to materials.

High Quality End Product

Rockwell BPK100 features a highly efficient impact crusher from the PDK series which stands out thanks to its high reduction ratio and durability. Moreover, this crusher has outstanding shaping abilities, thus producing a superior end product with the perfect cubical shape. Accordingly, adding a one-deck screen enables the mobile impact crusher to produce one type of product with a precise and accurate dimension.

Fuel Efficiency and Electric Power

Not only does electric power reduce the carbon footprint, it can save contractors up to 30 percent on fuel costs when compared to the diesel-hydraulic drive systems.

Moreover, hybrid models of mobile crushers are more and more demanded considering the importance of fuel efficiency, rising transport and operational costs and the global focus on reducing emissions.​

Maintenance and Ease of Use

The mobile impact crusher start up is as easy as literally pressing one button. Driving the unit is done with a control remote which is very simple to use. The PLC screen in the panel shows all the main components of the machines. In case of breakdown, the screen will point out the breakdown location for inspection. Parts subjected to wear are easily accessible and are replaced within a short period of time.

Reliability

Thanks to many years of experience in designing, engineering and manufacturing crushers, combined with excessive quality testing and high quality components, the Rockwell mobile impact crusher is a reliable machine which has proven to always deliver a superior product at a high output.​

Benefits

  • Adaptable to all applications​
  • Mobility, flexibility and compactness​
  • Safe and easy transport​
  • Easy and rapid maintenance​
  • High quality finished product with excellent cubic shape​
  • Low fuel consumption (20-40% less than hydraulic models)​
  • Low operating costs​
  • High crushing capacity​
  • Accurate and precise end product​

Standard Version

  • Featuring highly efficient Impact crusher from BPK series with high capacity​
  • By-pass chute with side hydraulically foldable conveyor ​
  • Wireless remote for easy control​
  • Bunker with hydraulically foldable back and side ​
  • Electric – Diesel ​
  • Dust reduction system​
  • Drum motors for conveyors​
  • PLC control system​
  • Vibrating Feeder with Grizzly screen​

Detail

Value

Feed Capacity

100-180 tph

Feed Opening

42″ x 36″ /1.050×900 mm​​

Weight

36.000 kg

Engine​:
Scania / Electric​​

487 hp /363 kVA​

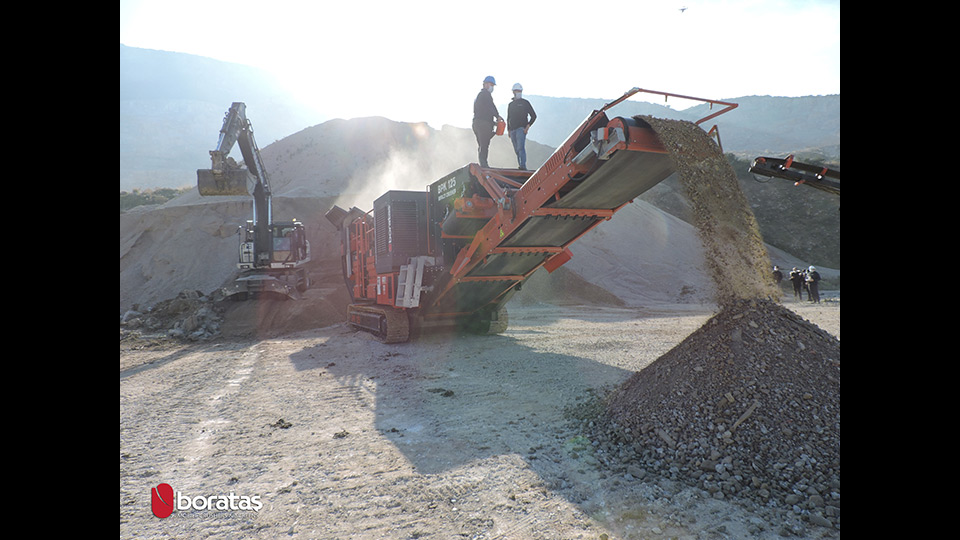

BPK 125 Tracked Impact Crusher

Mobile impact crushers BPK125 of the Rocktrack series are highly efficient mobile crushers with excellent reduction ratios and cubical shaping abilities. These mobile units are used for aggregate production and recycling.

As customers requirements need flexibility and versatility to be met at a high capacity crushing, Rocktrack mobile impact crushers BPK125 can be supplied as standard or customized by adding multiple options.

Mobility Combined With Productivity

The stand-out feature of Rocktrack mobile impact crushers BPK125 are their mobility, combined with high productivity per hour. these mobile units are fully self-contained on their tracked undercarriage and can easily be driven off a trailer by one operator and quickly put to work, with excellent capability for moving directly to materials.

Fuel Efficiency and Electric Power

Not only does electric power used in Rocktrack mobile impact crushers BPK125 reduce the carbon footprint, it can save contractors up to 30 percent on fuel costs when compared to the diesel-hydraulic drive systems.

Moreover, hybrid models of our mobile impact crushers are more and more demanded considering the importance of fuel efficiency, rising transport and operational costs and the global focus on reducing emissions.

Maintenance and Ease of Use

Rocktrack BPK125 mobile impact crushers start up is as easy as literally pressing one button. Driving the units are done with a control remote which is very simple to use. The PLC screen in the panel shows all the main components of the machines. In case of breakdown, the screen will point out the breakdown location. Parts subjected to wear are easily accessible and are replaced within a short period of time.

Reliability

Thanks to many years of experience in designing, engineering and manufacturing crushers, combined with excessive quality testing and high quality components, Rocktrack mobile impact crushers are reliable machines which have proven to always deliver a superior product at a high output.​

Benefits

  • Adaptable to all applications​
  • Mobility, flexibility and compactness​
  • Safe and easy transport​
  • Easy and rapid maintenance​
  • High quality finished product with excellent cubic shape​
  • Low fuel consumption (20-40% less than hydraulic models)​
  • Low operating costs​
  • High crushing capacity​

Standart Version

  • Featuring highly efficient Impact crusher from PDK series with high capacity​
  • By-pass chute with side hydraulically foldable conveyor ​
  • Wireless remote for easy control​
  • Bunker with hydraulically foldable back and side ​
  • Electric – Diesel ​
  • Components with direct drive ​
  • Dust reduction system​
  • Drum motors for conveyors​
  • PLC control system​
  • Vibrating Feeder with Grizzly screen​

Detail

Value

Feed Capacity

200-350 tph​

Feed Opening

52″ x 34″ /1.300×850 mm​​

Weight

55.000 kg​​

Engine​:
Scania / Electric​

670 hp /500 kVA​

BPC100 Tracked Cone Crusher

Mobile cone crushers BPC100 Cotrack are exceptional mobile crushers able to provide large reductions ratios and an excellent cubical shape at high output capacity. Cotrack BPC100 mobile cone crusher are used in a variety of applications such as aggregate crushing, mining and recycling. Moreover, this machine is ideal for contractors or aggregate producers working in urban regions thanks to its compactness, mobility, and dust reduction system .Using Sandvik cone crushers as the main crusher of the unit, the mobile cone crushers of Boratas Machinery are high performing crushers able to crush medium to hard natural stones, even those with abrasive varieties. As some contractors and users requirements are precise and demand flexibility to be me optimally met, Cotrack hybrid mobile cone crushers come with multiple sizes and features and are supplied as standard or customized versions.

High Capacity Crushing and Shaping

Cotrack BPC100 mobile cone crushers provide high capacity crushing even at tight settings. their main sandvik crusher delivers outstanding performance in both crushing and shaping to produce a superior high quality end product.​

Maintenance and Durability

Cotrack mobile cone crushers are designed to be durable machines with a long service life due to the robustness of their frame and their wear resistant components. Although maintenance needs of these mobile crushers are relatively low, parts subjected to wear are easily accessible and can be replaced within a short period of time. Despite the easiness of maintenance, Boratas Machinery is investing heavily in making maintenance very safe and secure for users.​

Cost Effectiveness

Considering the low fuel consumption, the low need of maintenance and high productivity, these mobile cone crushers operate at the lowest overall cost possible. The optimal cost effectiveness in conjunction with its high uninterrupted uptime and high capacity crushing makes these mobile crushers very profitable.​

High Mobility

Its durable and heavy duty track system provides mobility on all types of grounds. Cotrack BPC100 mobile cone crushers are controled with a wireless remote and can go as fast as 1.2km/h.

Benefits

  • Adaptable to all applications​
  • Mobility, flexibility and compactness​
  • Safe and easy transport​
  • Robust chassis and track frame​
  • Robust and wear resistant feed hopper​
  • Low fuel consumption (20-40% less than hydraulic models)​
  • Easy and rapid maintenance ​
  • High uptime and high productivity​
  • High crushing capacity​
  • Low operating costs​

Standard Version

  • Featuring highly efficient Sandvik cone crusher CH430​
  • Hydraulically adjustable bunker feeder​
  • Control via wireless/wired remote​
  • Eletric-Diesel ​
  • PLC control system​
  • Dust reduction system​
  • Drum motors for conveyors​
  • Belt feeder​

Detail

Value

Feed Capacity

100-180 tph

Feed Opening

36″ /900 mm​

Weight

55.000 kg​​

Engine​:
Scania / Electric​

406 hp /500 kVA​

BPC 101 Tracked Cone Crusher

Mobile cone crushers of the Cotrack BPC101 series are exceptional mobile crushers able to provide large reductions ratios and an excellent cubical shape at high output capacity. These mobile crushers are used in a variety of applications such as aggregate crushing, mining and recycling. Moreover, thanks to its compactness, mobility, and dust reduction system, Cotrack BPC101 is ideal for contractors or aggregate producers working in urban regions.

Using Sandvik CH430 cone crusher as the main crusher, Cotrack BPC101 mobile cone crushers are high performing crushers able to crush medium to hard natural stones, even those with abrasive varieties. These cone crushers are equipped with a one-deck screen to produce an accurate and precise end product.​

As some contractors and users requirements are precise and demand flexibility to be me optimally met, Cotrack BPC101 mobile cone crushers come with multiple sizes and features and are supplied as standard or customized versions.

High Capacity Crushing, Shaping and Screening

Cotrack BPC101 Mobile Cone Crusher provides high capacity crushing even at tight settings. its main sandvik crusher delivers outstanding performance in both crushing and shaping in conjunction with its single-deck screen which adds precision to an already superior high quality cubical shaped end product.​

Maintenance and Durability

Cotrack mobile cone crushers are designed to be durable machines with a long service life due to the robustness of their frame and their wear resistant components. Although its maintenance needs are relatively low, parts subjected to wear are easily accessible and can be replaced within a short period of time. Despite the easiness of maintenance, Boratas Machinery is investing heavily in making maintenance very safe and secure for users.​

Cost Effectiveness

Considering the low fuel consumption, the low need of maintenance and high productivity, these mobile cone crushers operate at the lowest overall cost possible. The optimal cost effectiveness in conjunction with their high uninterrupted uptime and high capacity crushing makes them very profitable.​

Versatility

The variety in the options which can be added to Cotrack BPC101 mobile cone crushers allows to customize their mobile cone crushers according to their requirements.

Benefits

  • Adaptable to all applications​
  • Mobility, flexibility and compactness​
  • Safe and easy transport​
  • Robust chassis and track frame​
  • Robust and wear resistant feed hopper​
  • Low fuel consumption (20-40% less than hydraulic models)​
  • Easy and rapid maintenance ​
  • High uptime and high productivity​
  • High crushing capacity​
  • Low operating costs​
  • Versatility​

Standard Version

  • One-deck screen​
  • Return Belt​
  • Featuring highly efficient Sandvik CH430 cone crusher ​
  • Wireless remote for easy control​
  • Bunker with hydraulically foldable back and side ​
  • Electric – Diesel ​
  • Components with direct drive ​
  • Dust reduction system​
  • Drum motors for conveyors​
  • PLC control system​
  • Belt Feeder

Detail

Value

Feed Capacity

100-180 tph

Feed Opening

36″ /900 mm​

Weight

55.000 kg

Engine:
Scania / Electric

406 hp /500 kVA​

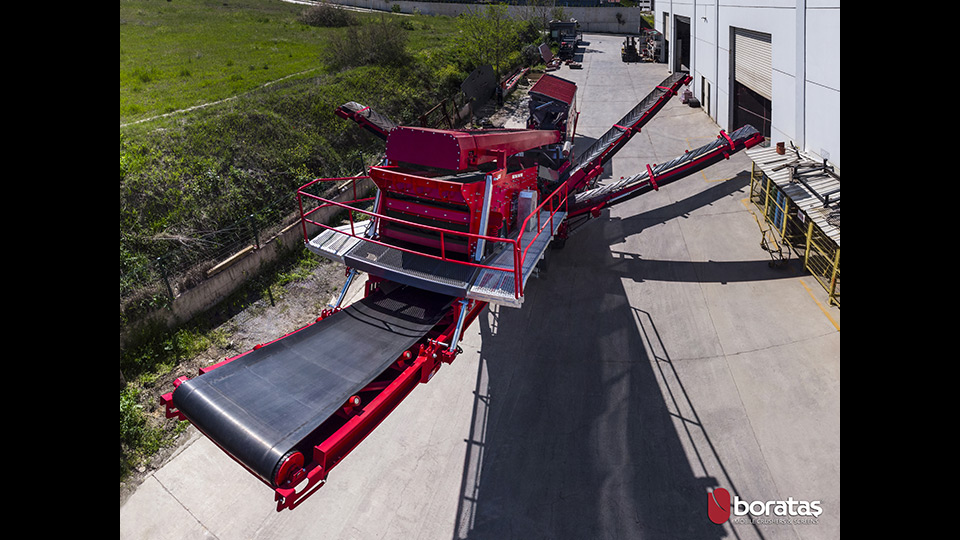

BPE103 Tracked Screens

Mobile screens of Classtrack BPE103 are the ideal way to optimally screen materials at the lowest operation cost while still benefiting from mobility and compactness. These mobile screens are typically used in aggregate production, quarries, mining, and recycling and are perfect for users looking for mobility and compactness.Classtrack BPE103 mobile screens feature a triple deck vibrating screen and are usually fed by a crusher in a multistage crushing plant or an excavator for material screening.​

High Production Capacity

The perfect interaction of all its high quality components, coupled with many extensive tests in quarries is the base of Classtrack BPE103 mobile screens for increased operational efficiency, optimal screening and extremely low downtime.

Maintenance and Durability

Classtrack BPE103 mobile screens are extremely durable machines due to their wear resistant high quality components and robust chassis. In case of a breakdown, the PLC screen located in the panel will point to the location of the failure. The parts subjected to wear are easily accessible and can be replaced or repaired within a short period of time.

Adjustability

Classtrack BPE103 are supplied as standart or tailored versions in order to meet all the process requirements.​

These mobile screens come with different types of meshes, such as normal steel screen mesh, perforated sheet or polyurethane. Washing options can also be added if required.​

Cost Effectiveness

The quick set-up time, low downtime, low fuel consumption and low overall cost make Classtrack BPE103 a very cost effective mobile unit. Accordingly, Its high productivity, and high uninterrupted uptime increases profits exponentially.

Benefits

  • Adaptable to all applications​
  • Mobility, flexibility and compactness​
  • Safe and easy transport​
  • Robust chassis and track frame​
  • Low fuel consumption (20-40% less than hydraulic models)​
  • Easy and rapid maintenance ​
  • High uptime and high productivity​
  • Low operating costs​
  • Versatility and Adjustability​

Standard Version

  • Triple-deck screen​
  • Wireless remote for easy control​
  • Electric – Diesel
  • Components with direct drive
  • Drum motors for conveyors​
  • Foldable side conveyors​
  • PLC control system​
  • Grizzly Hopper

Detail

Value

Feed Capacity

150-200 tph

Screen  Size

5′ x 18′ ( 1500 x 5500mm)​

Weight

55.000 kg​​

Engine​:
Scania / Electric​

148 hp / 110kW​

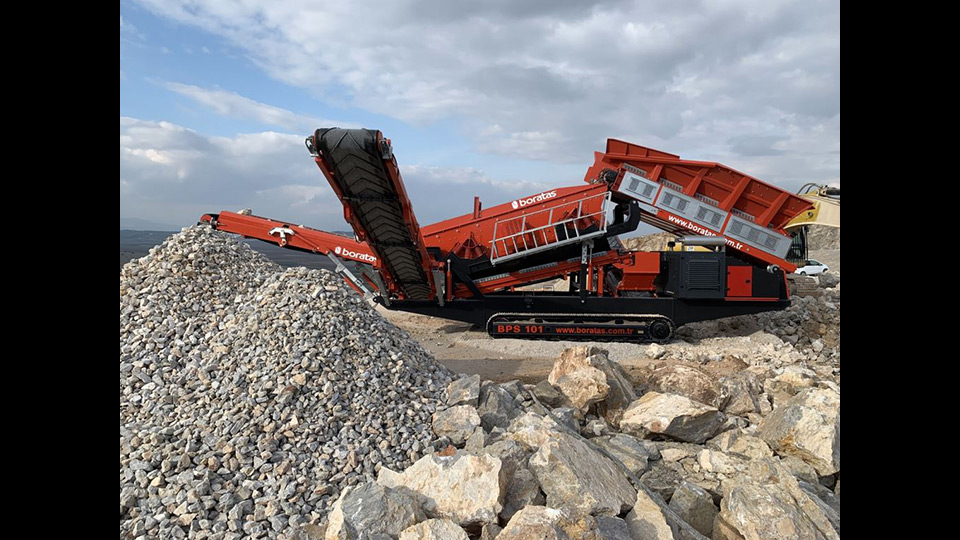

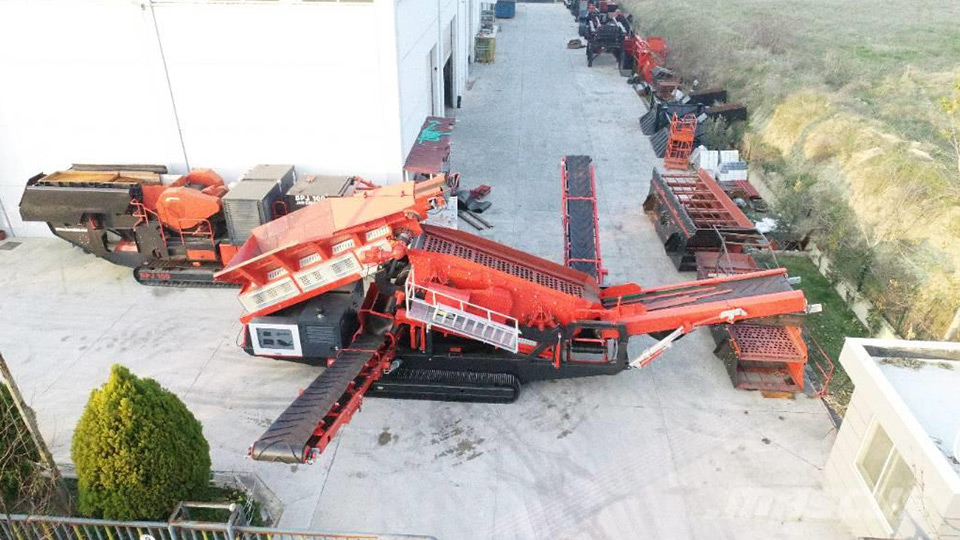

BPS101 Tracked Scalping Screen

Mobile Scalping Screens BPS101 of Scaltrack series are a combination of extremely accurate classification of end product and high output. Its cost effectiveness is justified by its low fuel consumption, low operating costs and maintenance as well as high capacity.

Typically used to classify and separate the products between the primary and secondary crusher, Scaltrack mobile scalping screens are ideal for primary scalping and natural sand applications.​

Scaltrack mobile scalping screens BPS101 can be customized by adding features listed in features section.

Quick Set-up Time

Set-up time has never been easier and quicker with Scaltrack mobile scalping screen. Switching from transport to operating position only necessitates unfolding the foldable conveyors, setting the right screen angle and finally raising the feeder to the right position.​

Easy To Operate and Maintain

Simplicity has always been key. Simplifying the use of a complex machine is what the Scaltrack mobile scalping screen is about. Controls are done through a wireless remote or with cables. Turning on the mobile scalping screen is as easy as pushing the start button.

In case of breakdown, the PLC screen points to the location of the breakdown to be repaired. Moreover, no maintenance related to hydraulics, no oil leakage nor pump replacements. Every replaceable part is easily accessible and can be replaced within a short period of time.​

Flexibility and Adjustability

Being used in multiple applications such as recyling or normal aggregate pre-screening, Scaltrack mobile scalping screen has a variety of options which can be added or removed giving it extreme flexibility and adjustability.

The feeding is done either by a feeding belt or an apron feeder. The latest provides reliability and high capacity in the most demanding quarry applications, moreover, the metallic nature of the apron feeder prevents material sticking. Screening is done either by grizzlies, Grizzly finger bars, or hexagonal holes. Steel screen mesh can be added as an option.

Cost Effectiveness

The quick set-up time, ease of maintenance,low fuel consumption and low cost of operation all together makes Scaltrack mobile scalping screen a very cost effective mobile unit. Accordingly, Its high productivity, and high uninterrupted uptime increases profits exponentially.

Benefits

  • Adaptable to all applications​
  • Mobility, flexibility and compactness​
  • Safe and easy transport​
  • Robust chassis and track frame​
  • Robust and wear resistant feed hopper​
  • Low fuel consumption (20-40% less than hydraulic models)​
  • Easy and rapid maintenance ​
  • High uptime and high productivity​
  • Low operating costs​

Standard Versions

  • Operates on electricity or diesel​
  • Hydraulically foldable belts​
  • Wireless remote control​
  • Belt feeder​
  • PLC control system​
  • Drum motors​
  • Replaceable screen mesh

Detail

Value

Feed Capacity

250-400 tph

Screen Size

5′ x 15′ ( 1500 x 4500mm)​

Weight

33.000 kg

Engine​:
Scania / Electric​

148 hp / 110kW​

Menu
×

Hello!

Click one of our contacts below to chat on WhatsApp

× How can I help you?
